Woozle’s GBA Consolizer kit LCD version

(5 customer reviews)

From: $140.00

Round 3 Pre Orders will start ASAP!

Description

This is a PRE ORDER!!!
Quantity will not be limited, buy as many as you like!
We will stop sales for a week or so between batches in order to make sure everything is in order, then move on with another pre order.
Parts orders will be placed on a regular basis and orders filled and shipped as soon as all parts are in hand.
Read about pre orders here.

This is the LCD version and the plastics are only available in black at this time.
I will add the color options in to this page when I have them here and photographed etc.


Consolizer kit for Game Boy Advance 40-pin AGB-001*
Features:

  • Fine-tuned video output
    • 720p digital video output**
    • GBA video at 60 Hz Vsync, absolutely no stutter or screen tearing!
    • Direct digital 4:4:4 RGB video from GBA
    • 4x scale for GBA games, letterboxed in 1280×720 frame
    • 5x scale for GB/GBC games, fills screen vertically with pillar boxes on side
  • No input lag.
  • Direct digital audio sent over DVI+ at 48 KHz
  • On Screen Display (OSD) menu accessible by pushing select + down, featuring:
    • Adjustable strength scan lines and grid lines
    • 32+ Game Boy color palettes, adjustable in game (PICS HERE)
    • Gamma/color correction provided via Shader menu option (PICS HERE)
    • Store user video settings in flash memory
  • Controller support
    • Wired SNES controller
    • Compatible with 8Bitdo Retro Receiver for use with:
      • 8Bitdo wireless SNES controller
      • Wii U Pro controller
      • Switch Pro controller
  • 3D printed enclosure
  • Full console conversion, LCD is replaced with 3D printed enclosure
  • USB powers kit and GBA mobo, under 500 mA current draw. Can be powered from TV USB port.

Side by side comparison of GameBoy Player Composite and Consolizer DVI+ pics HERE!

*Note: The glacier color GBA has a better chance of being a 40-pin, but a custom adapter FFC is available to buy separately to adapt to 32 pin versions so all GBA consoles can be used with the 40 pin kit!
**Note: Some displays don’t like the DVI+ output, DVI Tx mode is available as a fall back option. The kit ships with DVI enabled by default for maximum compatibility.

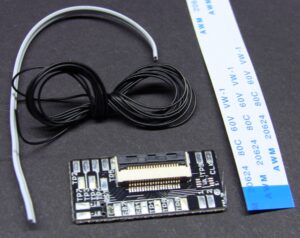

Breakout PCB for soldering the GBA controls, audio, and power wires. Connects to main board using an FFC (Flat Flex Cable). See last 2 pics, one for LCD, other for full case installs.


GameTechUS GBAConsolizer playlist

Woozle’s videos

Bob of RetroRGB’s preview video

MetalJesusRocks review vid

MadLittelPixel review vid

Jeremy Parish stream/review vid


Installation is not included, but I maintain a list of people I trust to do good work here: MODDERS LIST!

You need to provide your own GameBoy Advance console or motherboard to use with this kit, we do not provide it.

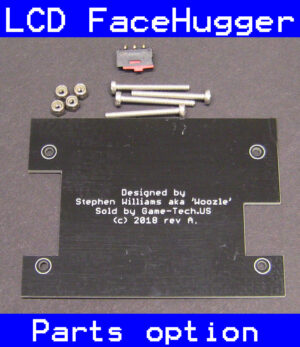

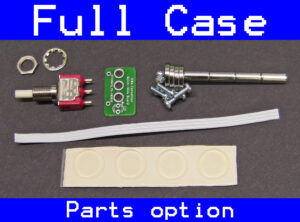

Second pic through 4th pic gives you an idea of what’s included with your purchase, LCD and full case versions.


How to spot a 40 pin GBA:

GBAs with the 40-pin usually have a leading zero on the pcb code seen through the backside of the GBA.
Not sure if it’s a guarantee, but I’ve had good luck with this method.

As far as internally, just needs to have the 40 pin ribbon connector.

A custom adapter FFC is available to buy separately to adapt to 32 pin versions of the GBA.


34 pin SP version is coming, but will be a different physical kit, stay tuned!
A GameCube GameBoy player version will come eventually…


GBAConsolizer User Manual
GBAConsolizer Installation Guides
GBAConsolizer kits’ parts Terminology
GBAConsolizer FAQ
GBAConsolizer Troubleshooting guide
GBAConsolizer known problem devices


Warranty:

Unfortunately we are only hobbyist, not wal-mart, so we cannot warranty the kit unless it has been installed by one of the approved installers listed above.
We do test each kit fully though, so we can guarantee it worked fine when shipped.
We can’t control things like ESD and bad upgrade practices.
We can do repair work, just not for free.


Links to articles about the GBAConsolizer:

Gizmodo’s lacking article

NintendoLife.com article

https://www.dualshockers.com/gba-games-hd-gba-consolizer/

https://nintendosoup.com/gba-consolizer-in-the-works-allows-gba-games-to-be-played-in-glorious-hd/

https://gonintendo.com/stories/325926-gba-consolizer-lets-you-play-your-gba-games-in-hd-on-tv

https://www.icrewplay.com/vi-piacerebbe-giocare-con-il-game-boy-advance-in-hd/

https://kotaku.com/new-mod-lets-you-play-game-boy-advance-games-in-hd-on-a-1830834944

https://www.denofgeek.com/us/games/game-boy-advance/277989/gba-consolizer-play-game-boy-advance-games-hdtv

https://qooah.com/2018/12/07/gba-consolizer/

https://mspoweruser.com/game-boy-advance-hardware-mod-makes-your-games-look-great-on-a-hdtv/

https://blog.hackster.io/turn-your-game-boy-advance-into-the-console-youve-always-wanted-395b82ba07ba

https://standew.com/gba-consolizer-lets-you-play-game-boy-advance-games-on-hdtvs/

https://www.turn-on.de/play/news/hacker-baut-game-boy-advance-zur-hd-konsole-um-441636

https://www.uagna.it/videogiochi/emulare-il-game-boy-advance-in-hd-sulla-tv-con-gba-consolizer-118430

jonathanraychapman.tumblr.com/post/188832967530/woozles-gba-consolizer-review-455-this-is-my
