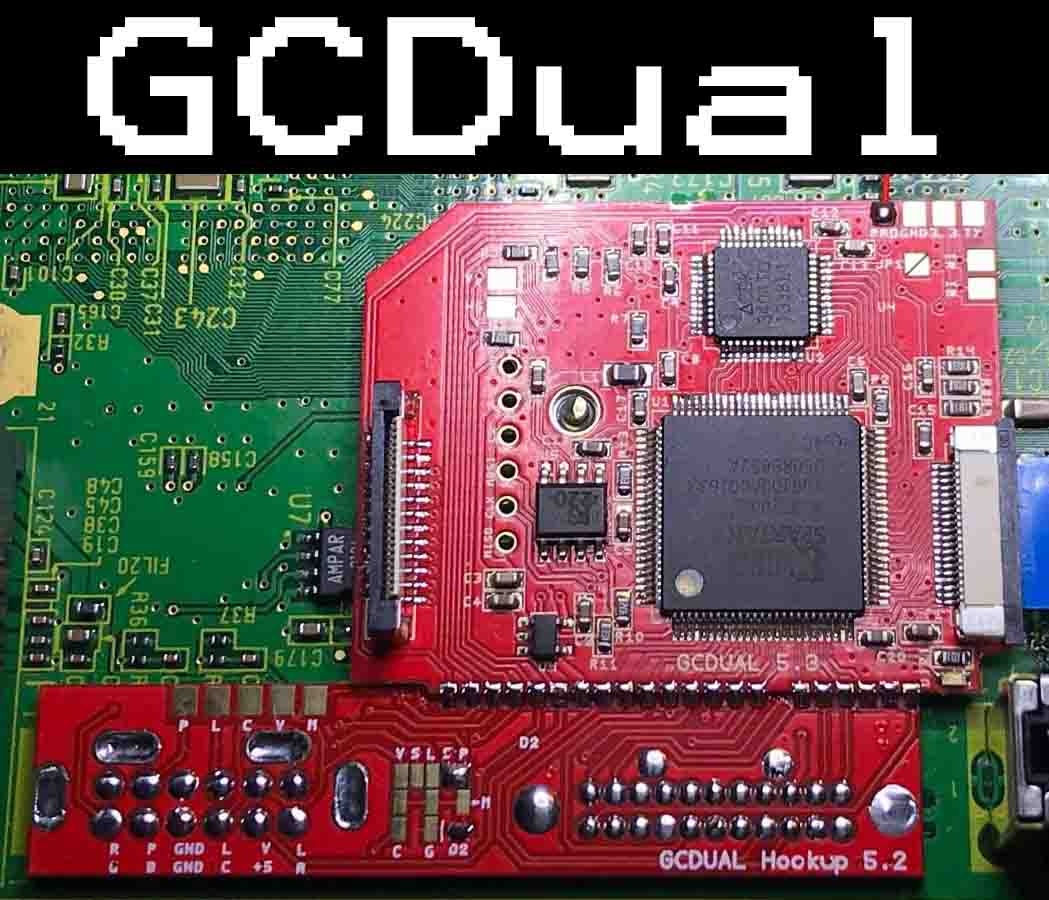

GCDual the GameCube 240p/480p HDMI Internal upgrade kit

From: $144.95

Description

This is a semi-short pre order setup, kits are supposed to ship to me this week (8-22-23).


Citrus3000psi (Dan Kunz) has reworked the GCvideo open source project to make it easier to install and look nicer once done!


GCDual is an internal modification designed to run GC-Video 3.1 by Ingo Korb
Made for the DOL-001 Gamecube only, does not work on DOL-101!
Simultaneous HDMI & Analog Output!

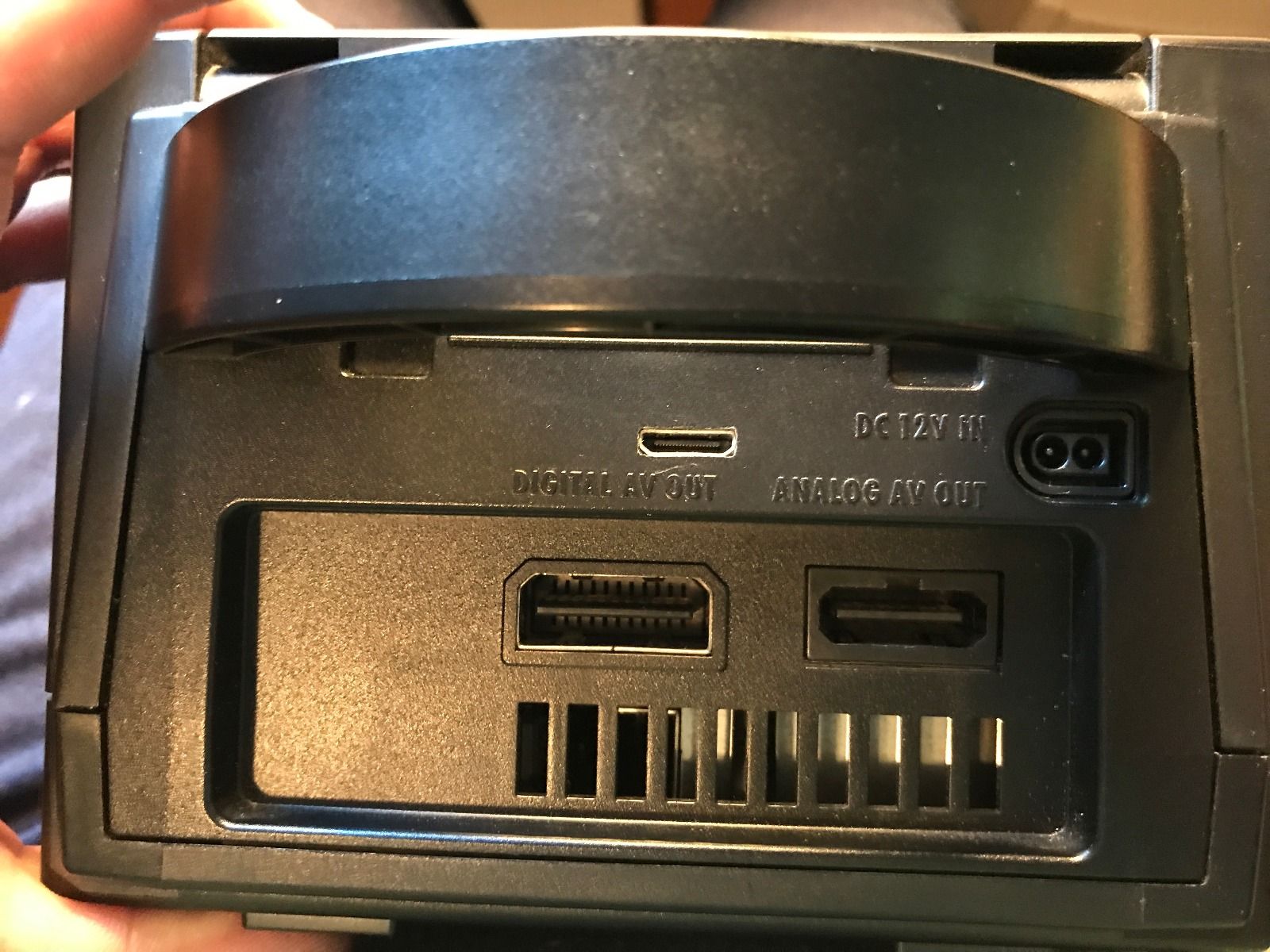

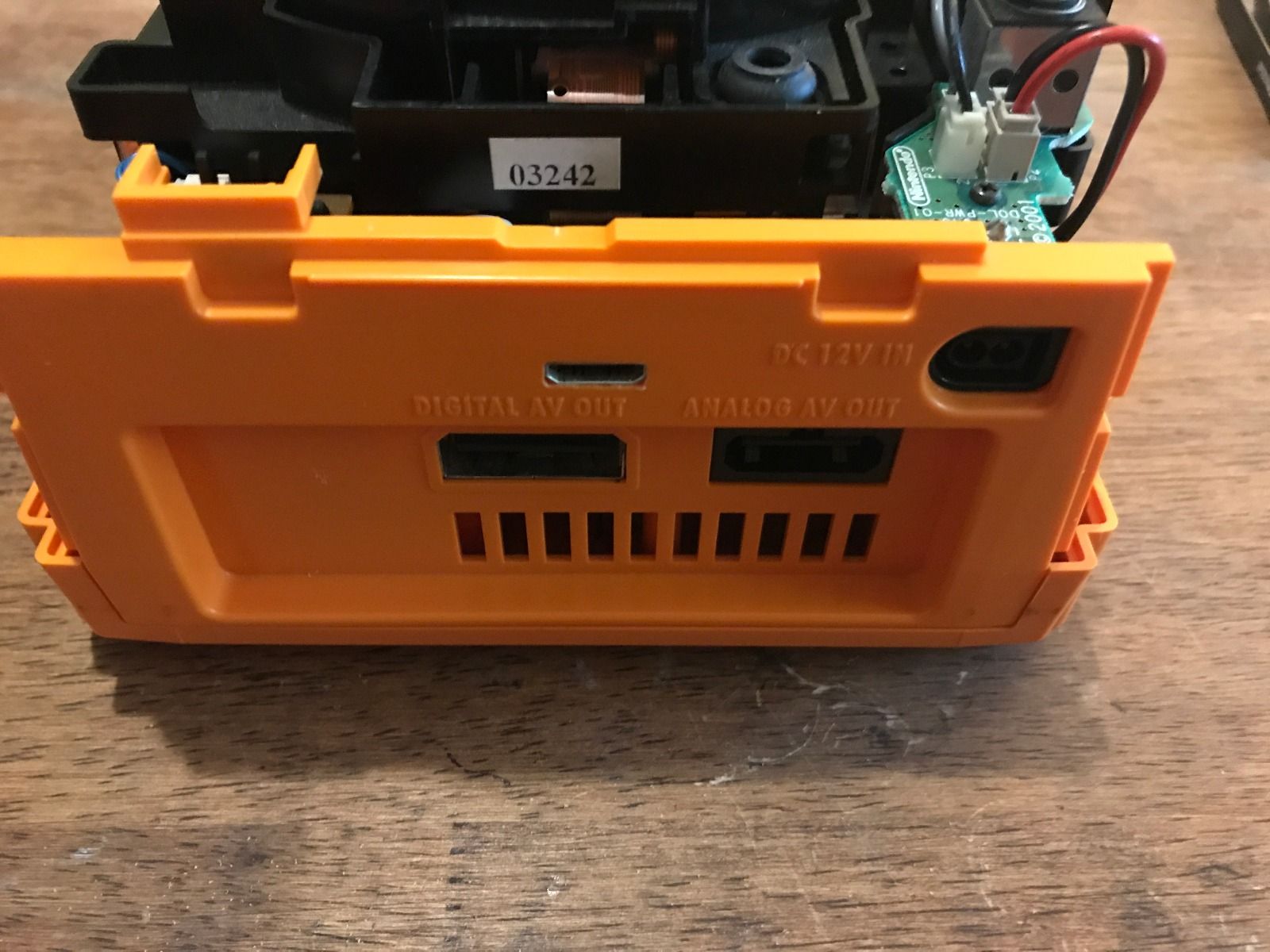

Digital Port is NOT removed and is fully functional!
It can output 240p/480i/480p in all video modes.
240p/480i and can be line doubled to display 480p.
The analog portion supports the following outputs: RGBS/RGBHV/RGsB/YPbPr.
Composite sync can output TTL or attenuated levels depending on the jumper state of JP2.
RGBS Scart cables can easily be setup to use a CSYNC cable or Composite Video Sync cable.
There currently is no good “off the shelf” solution for VGA.

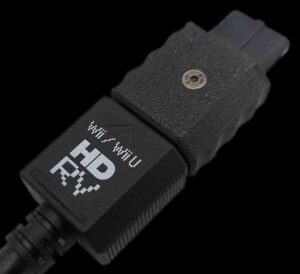

For YPbPr there is an adapter to allow you to use a Wii component cable.

If you would like to know more about the features available with GC-Video (Like the On screen display, etc) Please checkout Ingo Korb github, https://github.com/ikorb/gcvideo

GC-Video also carries this license: https://github.com/ikorb/gcvideo/blob/master/README.md


This ready to install kit that includes everything you need besides basic tools.
A list of tools needed is listed in the install instructions.
Each kit is thoroughly tested before being packaged and sent out.
Installation is difficult! Unless you are a proficient modder seek professional installation.
We cannot be held responsible for damage to any kit unless installed by one of our referral list modders.

Installation Instructions: GCDual Install Guide

QSB Jumper Guide: GCDual Jumpers Guide
